HPN-SSH is a research project based at the Pittsburgh Supercomputing Center

Introduction to HPN-SSH

(PI) Chris Rapier PSC, Michael Stevens CMU, Benjamin Bennett PSC, Mike Tasota PSC/CMU, Mitch Dorrell PSC
email: hpn-ssh@psc.edu

In this page

Abstract

SCP and the underlying SSH2 protocol implementation in OpenSSH is network performance limited by statically defined internal flow control buffers. These buffers often end up acting as a bottleneck for network throughput of SCP, especially on long and high bandwidth network links. Modifying the ssh code to allow the buffers to be defined at run time eliminates this bottleneck. We have created a patch that will remove the bottlenecks in OpenSSH and is fully interoperable with other servers and clients. In addition HPN clients will be able to download faster from non HPN servers, and HPN servers will be able to receive uploads faster from non HPN clients. However, the host receiving the data must have a properly tuned TCP/IP stack. Please refer to this tuning page for more information.

The amount of improvement any specific user will see is dependent on a number of issues. Transfer rates cannot exceed the capacity of the network nor the throughput of the I/O subsystem including the disk and memory speed. The improvement will also be highly influenced by the capacity of the processor to perform the encryption and decryption. Less computational expensive ciphers will often provide better throughput than more complex ciphers.

Performance Gap

With many high bandwidth connections, there is a performance gap between what SSH is capable of and what the network link has the capacity to do. The difference between these two numbers is the performance gap, or the underutilized portion of your network connection. This gap, in most situations, is the direct cause of undersized receive buffers in the SSH congestion control mechanism. The graph below shows the optimal receive buffer versus the effective SSH channel receive buffer for various round trip times along a 100Mbps path

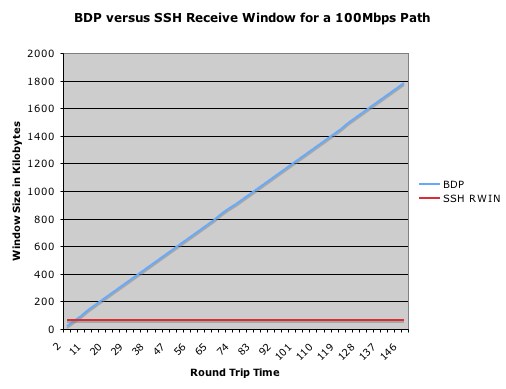

Graph of optimal receive buffer vs. the effective SSH channel receive buffer

The difference between the red and blue line is, essentially, wasted throughput potential along the path.

Normal vs. HPN SCP Performance

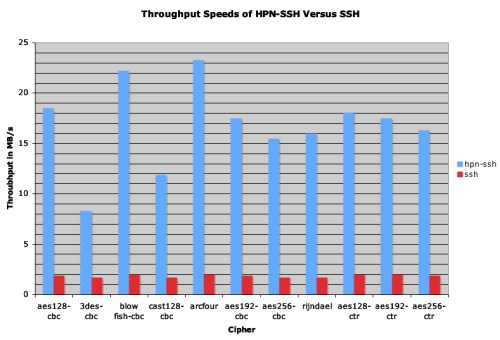

The effect of raising the SSH buffer sizes can be seen in the following chart. The standard SSH throughput, represented by the red columns, closely matches the expected throughput for this path if the receive buffer was limited to 64KB. By increasing the size of the SSH channel receive buffers throughput, represented by the blue columns, improved by as much as 1000%. The variation now seen is due to the complexity of the cipher and the limits of the hard drive.

Chart showing the effect of increasing the SSH buffer size on throughput

Clearly, the HPN patches significantly boost throughput performance. This enhancement is entirely from tuning the SSH buffer sizes.

Patches

All patches should be applied to the OpenSSH source files using the 'patch' utility from the command line. Building SSH from source is actually quite easy and the recommended method. Binary packages are available for CentOS, Fedora, and Ubuntu.

HPN-18

This series introduces a parallelized version of the ChaCha20 cipher. This moves the task of generating the keystream onto independent threads allowing the main thread to process data more effectively. In comparison to HPN-SSH 17v14 this has resulted in an 12% improvement in throughput. In comparison to OpenSSH 9.4 we are seeing a 59% improvement. We have also changed the version scheme. Instead of 18v1 we are now using a Major.Minor.Fix system so the first release of this series is 18.1.0.

We have also changed the github repo name from 'openssh-portable' to 'hpn-ssh'. All existing URLs using the old name should be automatically forwarded to the new name.

HPN-17

The 17th series saw mutliple changes to the nomenclature of the compiled binaries. In order to allow for side by side usage with installed versions of OpenSSH we renamed all of the binaries to include an 'hpn' prefix. So ssh became hpnssh, sshd became hpnsshd, sftp became hpnsftp, and so forth. We also moved the configurations files to /etc/hpnssh and the default port to 2222. HPN-SSH clients will, by default, use port 2222 but, if it fails to connect, it will fall back to port 22.

We also introduced some major changes to the way the ssh receive buffer was being calculated and used. The upshot being that we resolved a problem with a long period of poor performance while the buffer was being malloced (in 32KB chunks) to the correct size. We also fixed a number of memory problems that were leading to wildly excessive memory usage.

HPN-16

This series was never released to the public.

HPN-15

The 15th revision series of HPNSSH introduces a number of changes. First, the prior versions of the AES-CTR multithreading cipher did not make use of AES-NI. This is a set of on cpu hardware instructions that accelerate the computation of the AES cipher. As such, on some systems the multithreaded cipher was slower than the single threaded version. This has been changed to make use of OpenSSL's AES instructions which will automatically use AES-NI if it is available.

This revision series also includes automatic resumption of failed transfers with SCP, gathering remote and local TCP stack metrics to aid in performance diagnostics, and performance improvements made through normalizing internal buffer sizes. Please see the What are you working on? section for more information about these improvements.

This series is available from GitHub at https://github.com/rapier1/openssh-portable, as binary packages from https://sourceforge.net/projects/hpnssh, and for Ubuntu as a ppa on Launchpad. For the ppa use sudo add-apt-package ppa:rapier1/hpnssh to add it to your package list.

At this time we will not be breaking down features into independent patch sets as we did with HPN14. This may change in the not so distant future. It's just a lot of extra work and without specific user interest we'd like to focus on other tasks.

HPN-14

This is the 1st revision of the 14th major version of the HPN patch set. The HPN13 and HPN12 patch sets are available from https://sourceforge.net/projects/hpnssh. There are two fundamental differences between the HPN13 and HPN14 patch set. The most significant of these is the inclusion of fully functional Multi-Threaded AES CTR (MT-AES-CTR) mode cipher. A paper and presentation about this work are available. The previous version of MT-AES-CTR failed when the process forked to the background or, starting in OpenSSH 6.1, when the rlimit sandbox was used. In the former case the threads lost their context from the parent during the fork. In the latter, the rlimit prevented the creation of new threads/processes by setting NPROCS to 0. This issue was resolved by using the single process AES CTR cipher during the pre-authentication phase. After authentication takes place the pointer to the AES CTR cipher was replaced with a pointer to the MT-AES-CTR cipher. The application then forces a rekeying to take place which starts up the threads. No real change was made to the cipher itself - just how it was being called in SSH.

This cipher mode introduces multi-threading into the OpenSSH application in order to allow it to make full use of CPU resources available on multi-core systems. As the canonical distribution of OpenSSH is unable to make use of more than one core, high performance transfers can be bottlenecked by the cryptographic overhead. HPN12 dealt with this by the introduction of None Cipher Switching. However, this technique is limited to those users who are willing to allow their data to be transferred without encipherment. It also was, by design, limited to bulk data transfers which further restricts its value to some users. The MT-AES-CTR mode will allow users, on multicore platforms, to attain throughput rates comparable or equal to unencrypted data transfers. In both lab and real world tests throughput at full GigE line rates, with full encryption, were commonly seen.

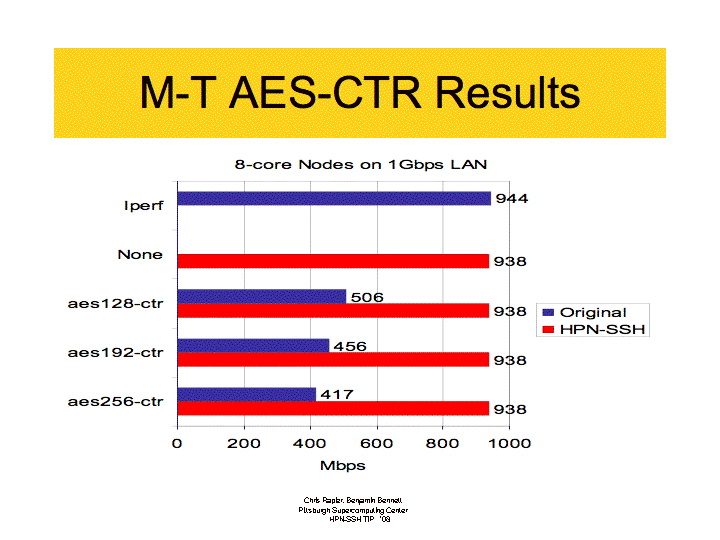

Image showing how MT AES-CTR breaks through the single core bottleneck

Obviously, the MT AES-CTR mode cipher breaks through the single core bottleneck.

Obviously, the MT AES-CTR mode cipher breaks through the single core bottleneck.

MT-AES-CTR produces a cipher-stream that is indistinguishable from the distributed Single Thread AES-CTR (ST-AES-CTR) mode cipher and is fully compatible with all other AES-CTR mode implementations. In other words, it's completely backward compatible and will function in heterogenous connections with no problem. However, it is important to note MT-AES-CTR does impose additional overhead and may impose a performance penalty on single core machines. Additionally, the MT-AES-CTR mode cipher replaces the default ST-AES-CTR mode cipher post authentication.

The second major difference between HPN13 and HPN14 is that the NONE cipher switching routines have been split off into their own patch. There are some circumstances in which users may have need of the NONE cipher without the additional overhead of the dynamic windowing (packet radio under an amateur license for example). It also helps keep the patches a little cleaner. Please note, it's not always trivial to layer the patches on top of each other. If you don't have much experience dealing with reject files produced by diff I suggest making use of either the kitchen sink patch or the dynwindow-noneswitch patch sets.



How to apply the patches:

  1. Get the OpenSSH source code from OpenSSH.org
  2. Untar OpenSSH source
  3. cd into the OpenSSH source directory
  4. If gzipped, type zcat pathtopatch/patchfile | patch -p1 Otherwise type patch -p1 < pathtopatch/patchfile
  5. Type configure && make
  6. Type make install

Problems with buffer_append_space in HPN-SSH. If you are experiencing disconnects due to a failure in buffer_append_space please let us know. We're currently tracking some problems with this and we're trying to gather more information to help resolve it. You may want to try using -oHPNBufferSize=16384 to restrict the growth of the buffer. Let us know if that helps.

Notes and News

HPN-SSH 18.3.0 Released

We are pleased to announce that HPN-SSH 18.3.0 has been released and is now available on https://github.com/rapier1/hpn-ssh. This release incorporates OpenSSH 9.6p1. Fedora and Debian packages are also available.

HPN-SSH 18.2.0 Released

We are pleased to announce that HPN-SSH 18.2.0 has been released and is now available on https://github.com/rapier1/hpn-ssh. This release incorporates OpenSSH 9.5p1. Fedora and Debian packages are also available.

HPN-SSH 18.1.0 Released

We are pleased to announce that HPN-SSH 18.1.0 has been released and is now available on https://github.com/rapier1/hpn-ssh. This version introduces a parallel ChaCha20-Poly1305 cipher that is 59% faster than OpenSSH 9.4. Packages for Ubuntu and Fedora will be...

Binary Packages Released for 17v11

Binary packages for Debian and Fedora are now available. Commands to add these package sources are:For Debian: sudo add-apt-repository ppa:rapier1/hpnsshFor Fedora: sudo dnf copr enable rapier1/hpnssh

HPN-SSH 17v11 Released

We are pleased to announce that HPN-SSH 17v11 has been released and is now available on https://github.com/rapier1/openssh-portable. This version brings HPN-SSH up to parity with OpenSSH 9.2 and resolves a number of minor bugs. Patches and binary packages will be...

HPN17v0 Released

We are pleased to announce HPN17v0. This version brings us up to date with OpenSSH 8.9. HPN17 also brings a big change to how we are naming things. From now all executables will have an "hpn" prefix attached to them. So "ssh" is now "hpnssh" and "scp" becomes...

Patch sets on SourceForge

All patch sets from 4.4p1 to 8.1p1 are now available on SourceForge at https://sourceforge.net/projects/hpnssh/. The entire codebase (merged with OpenSSH) is also available as a git repo from https://github.com/rapier1/openssh-portable. The SourceForge location now...

NSF funds HPN-SSH

We are proud to announce that the HPN-SSH development team has received a grant from the National Science Foundation (Award#: 2004012) to continue development on HPN-SSH. This grant will be used to develop and incorporate new features and optimizations. This grant...
